Wide-width low-temperature radio frequency plasma cleaning machine-ZY5000S plasma surface treatment system mainly includes three parts: plasma gun head plasma generator and control system. Used in mobile phone cover tablet car screen and other fie
Wide-width low-temperature radio frequency plasma cleaning machine-ZY5000S plasma surface treatment system mainly includes three parts: plasma gun head, plasma generator, and control system.
Product Principle
The structure of the wide-width low-temperature radio frequency plasma cleaning machine-ZY5000S plasma cleaning machine is mainly divided into three major components, which are high-voltage excitation power supply, plasma generator spray gun, and control system.
(A) High voltage excitation power supply:
The generation of plasma requires high-voltage excitation, and the atmospheric low-temperature plasma is excited by an intermediate frequency power supply with a frequency of 10-40KHz.
The high voltage is 4-10KV. The parameters can be adjusted according to the actual situation of the sample, and the optimal modification effect has been achieved.
(B) Spray gun of plasma generator:
The spray gun of the atmospheric low-temperature plasma generator can be divided into two types: jet direct injection and rotary direct injection. The difference lies in the different processing area.
(C) Control system:
The function of the control system is to control the operation of the entire atmospheric low-temperature plasma cleaning equipment and the protection of the overall system.
Performance advantage
(1) American circuit technology:
Adopt American high-voltage excitation power circuit technology to produce high-density plasma to ensure outstanding cleaning effect.
(2) Comprehensive safety protection:
Temperature safety protection function, overload protection function, air pressure malfunction protection function, short circuit and open circuit alarm protection function, various misoperation protection functions.
(3) Unique discharge technology:
The special treatment and special structure of the discharge device ensure the formation of a stable and uniform plasma.
(4) Production with assembly line:
According to the user's on-site requirements, the optimal assembly line production plan is configured, which greatly improves the production efficiency.
(5) High-quality product components:
All parts of the product adopt top quality components at home and abroad to ensure superior equipment performance.
(6) Low temperature cleaning:
Meet the temperature requirements of different occasions, without causing temperature effects on the cleaning products.
(7) Precision CNC machining:
Imported precision CNC machine tool processing technology, and equipped with imported three-coordinate measuring instrument for quality monitoring.

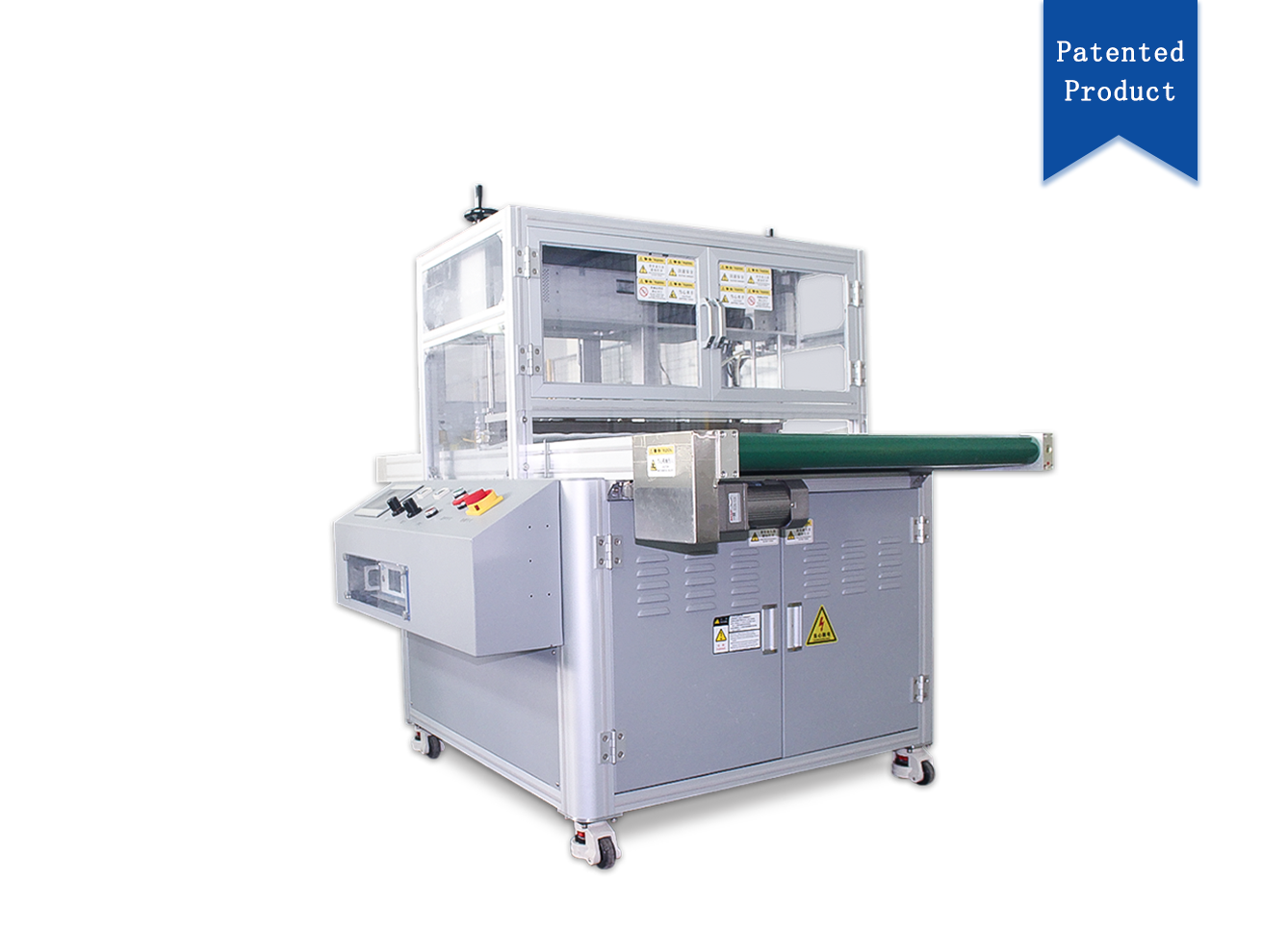

Wide-width low-temperature radio frequency plasma cleaning machine-ZY5000S
The wide-width low-temperature radio frequency plasma cleaning machine-ZY5000S equipment is placed in the packing box before installation. If the machine is not in use temporarily, please pay attention to the following matters when storing:
a. Must be placed in a dust-free and dry place.
b. The relative humidity of the storage location must be within the range of 0% to 85% without condensation.
c. Avoid storing in an environment containing corrosive gases and liquids.
d. It is best to pack and store in a place where vehicles and other moving objects are not easy to collide.
Preparation before installation: a. The customer's site must be equipped with AC 220V, capacity ≥ 2.5KVA power supply
b. Process gas with purity ≥ 99.996, gas pressure is greater than or equal to 0.3 Mpa
Wide-width low-temperature radio frequency plasma cleaning machine-ZY5000S is used in mobile phone cover, tablet, car screen and other fields.
This equipment is placed in the packing box before installation. If the equipment is not in use temporarily please pay attention to the following items when storing:
a. Must be placed in a dust-free and dry place.
b. The relative humidity of the storage location must be within the range of 0% to 85% without condensation.
c. Avoid storing in an environment containing corrosive gases and liquids.
d. It is best to pack and store in a place where vehicles and other moving ob
Preparation before installation: a. The customer's site must be equipped with AC 220V capacity ≥ 2.5KVA power supply
b. Process gas with purity ≥ 99.996 gas pressure is greater than or equal to 0.3 Mpa
Steps:
1. Turn on the main power switch turn on the touch screen and enter the startup screen.
2. Enter the boot screen click to enter the system enter the correct user name and password and enter the "main page": There are the following optional modes in the system interface: recipe management manual page password management and history.
This page is also an automatic mode page: power argon oxygen and transmission speed (pipeline speed) can be changed in a range
Note: Generally plasma is most likely to be generated when the power is 350W and the argon gas volume is 20LPM.
Control method: After setting the required parameters for product cleaning press the start button and wait for the gun tip to generate plasma then the product can be placed for cleaning. If the cleaning is completed press the stop button.
