AG8000-800 is an environmentally friendly AG+AF dual system + dual liquid supply system integrated spraying machine newly developed and designed by our company. It can be a dual-purpose glass spraying machine. The equipment has the function of AG+AF integrated completion, which has simplified integrated functions and greatly improved production. Efficiency and product yield. At the same time, the equipment can also be sprayed with AG anti-glare film or nano AF spraying on the glass surface in a single process.
Technical advantages of AG8000-800 equipment:
1. AG+AF combined process, equipment structure and process feasibility are fully guaranteed.
2. It has the function of identifying incoming materials, has high efficiency and energy saving, and can effectively extend the life of the equipment.
3. It has an intelligent control system for the amount of spraying agent, which can effectively ensure the consistency and stability of each piece of spray produced.
4. It has a spraying intelligent anti-sluggish system, which can effectively prevent poor batch quality.
5. The equipment conveying line uses a servo motor for conveying, which makes the conveying more stable.
6. Alarm prompt, which can effectively prevent poor batch quality. (Such as: alarm when air pressure is too low, spraying liquid is too low, spraying liquid flow is not in the setting range for operation)
7. The conveyor line adopts Teflon mesh belt assembly line, which fully guarantees the exhaust performance and durability of the equipment, and will not produce abrasion and dust spots.
8. The use of flexible towline and wear-resistant silica gel, high-speed and long-term operation will not produce dust spots, ensuring the best product rate.
9. The equipment is equipped with a 19-inch industrial control screen and a wireless keyboard and mouse. The large screen and powerful reserve memory ensure the stability and storage of the operating system.
10. The equipment adopts a frame-type integrated structure, and is designed for six-zone separation and coordination operation to ensure uniform and stable spraying effect.
11. Plasma cleaning zone adopts two-way module + Taiwan plasma technology.
12. The AG spraying area is a gantry closed structure.
13. The equipment is also equipped with a constant temperature surface dry function area after AG spraying, which can effectively promote the effective combination of AG syrup on the product surface with the syrup in the AF spray area, increasing the wear resistance and smoothness of the product in all aspects, and realizing the integrated forming function, effective Reduce labor turnover cost and increase yield.
14. The equipment system is highly intelligent and digital.

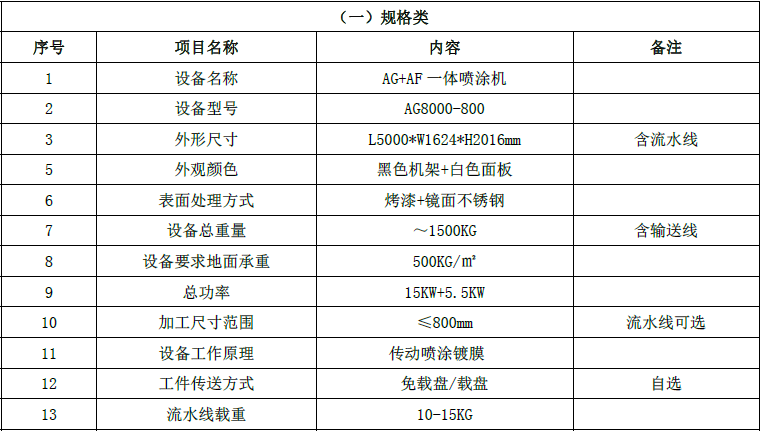

Performance parameters:
Application areas are in all kinds of AG glass products.
Equipment AG+AF spraying workflow: loading-electrostatic dust removal-Plasma cleaning-preheating-AG spraying-surface drying-AF spraying-unloading
