Dow corning 3-1944 HP rigid and flexible printed circuit board device and electronic devices used for the protection of the coating, and coating and sealing used in the bad environment in a variety of ceramics, hybrid circuits, components and connectors of ideal material, in order to provide excellent pointed foot/welding points covered.
Product features
Dow Corning Dow Corning 3-1944hp can be heated and solidified, semi-transparent, with good dielectric properties due to moisture and other adverse environmental effects.
Can use temperature range: 55 ~ 200 ℃, without solvent, the distribution of a single set of square, non-corrosive, quickly ask curing, high viscosity, printed circuit boards in bad environment to provide excellent protection coating.
High wear resistance, adhesive, solidified into a low stress, the flexible elastomer, excellent shock absorption, easy to repair, in large temperature variation, with good dielectric properties.
Application scenarios
Rigid and flexible printed circuit board device and electronic devices used for the protection of the coating, and coating and sealing used in the bad environment in a variety of ceramics, hybrid circuits, components and connectors of ideal material, in order to provide excellent pointed foot/welding points covered.

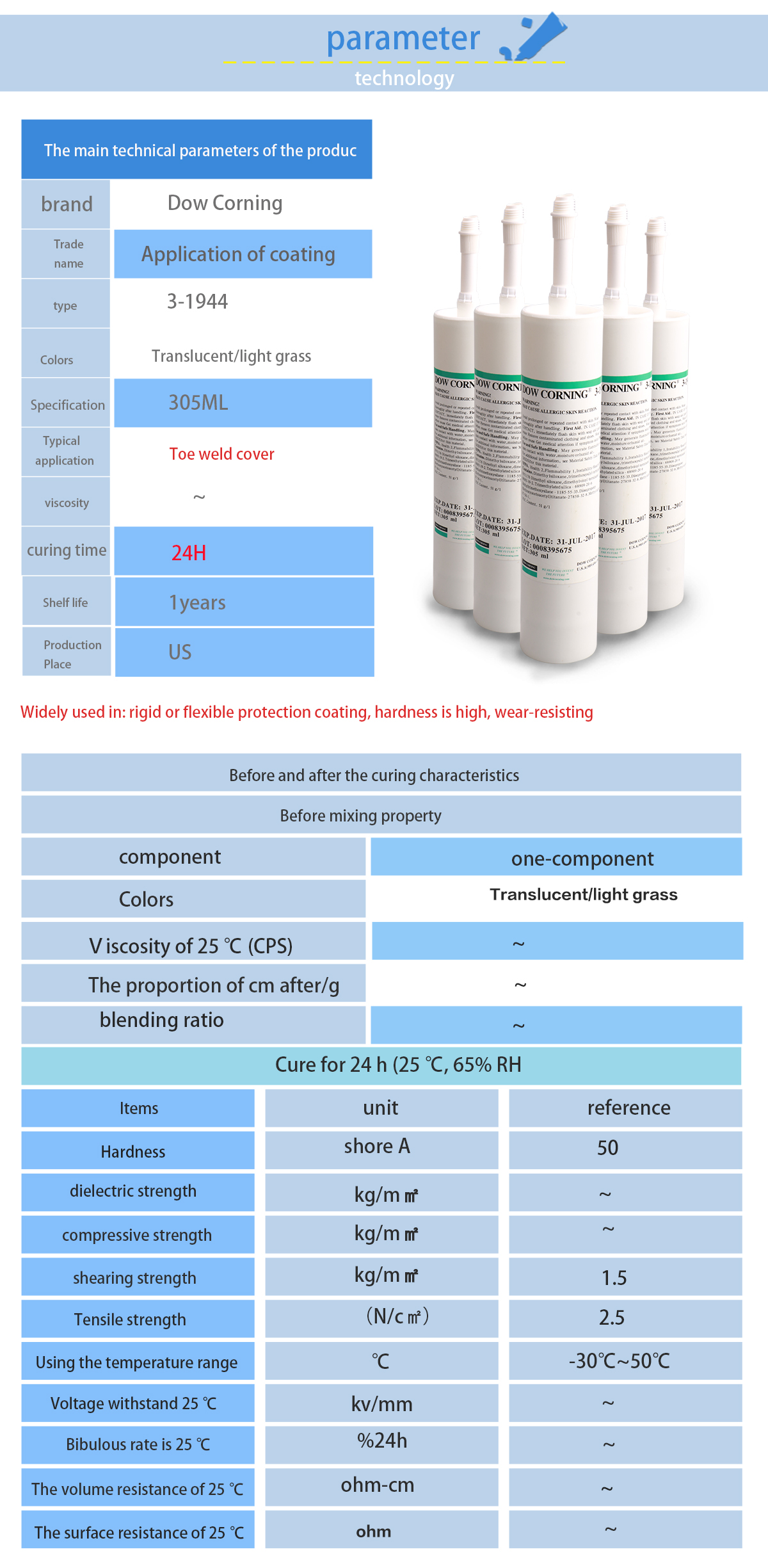

The performance parameters

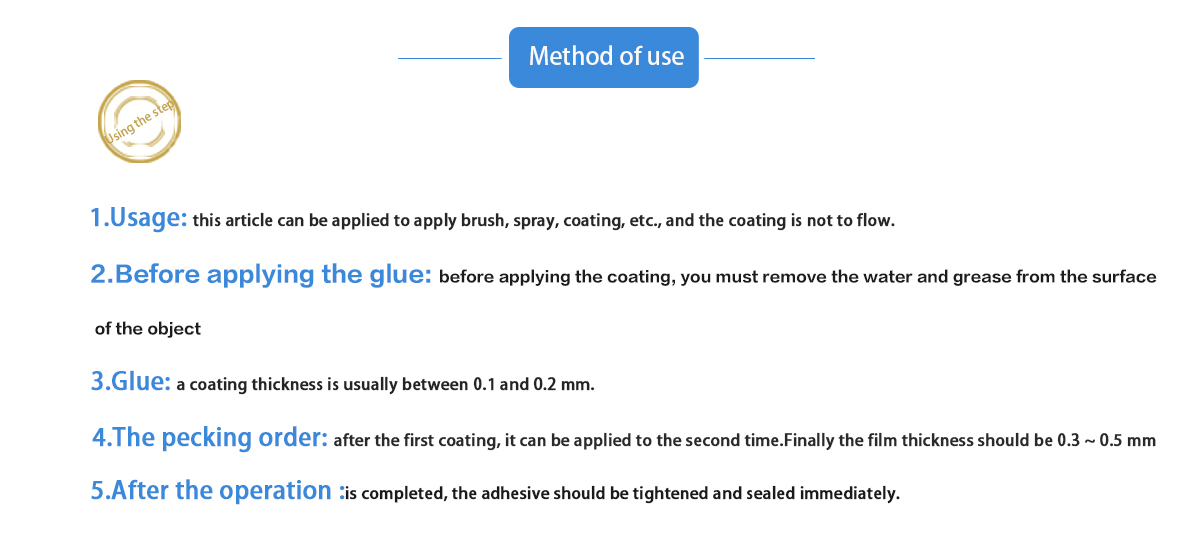

Method of use
Usage: this article can be applied to apply brush, spray, coating, etc., and the coating is not to flow.
Before applying the glue: before applying the coating, you must remove the water and grease from the surface of the object.
Glue: a coating thickness is usually between 0.1 and 0.2 mm.
The pecking order: after the first coating, it can be applied to the second time.
Finally the film thickness should be 0.3 ~ 0.5 mm.
After the operation is completed, the adhesive should be tightened and sealed immediately.
